Gel Storage Battery
MTLG12-120Ah
Gel Storage Battery
MTLG12 SERIES
Gel Storage Battery
MTLG12 SERIES
Gel Storage Battery
MTLG12 SERIES
Product Specifications
| Battery
Model |
Nominal
volage(v) |
Capacity(Ah)
20hrs/25°C(77F) |
Approx.Weight | Dimension | Terminal
Type |
||||||||
| kg | lbs | Length | Width | Height | Total Height | ||||||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||
| MTLG12-20Ah | 12 | 20 | 5.50 | 12.10 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3-T12 |
| MTLG12-24Ah | 12 | 24 | 7.50 | 16.50 | 174 | 6.85 | 165 | 6.50 | 125 | 4.92 | 125 | 4.92 | T5-T14 |
| MTLG12-35Ah | 12 | 35 | 10.20 | 22.44 | 196 | 7.72 | 131 | 5.16 | 163 | 6.42 | 180 | 7.09 | T6-T14 |
| MTLG12-40Ah | 12 | 40 | 12.70 | 27.94 | 197 | 7.75 | 166 | 6.53 | 174 | 6.85 | 181 | 7.13 | T6-T14 |
| MTLG12-55Ah | 12 | 55 | 16.20 | 35.64 | 230 | 9.05 | 138 | 5.43 | 211 | 8.30 | 229 | 9.02 | T5-T14 |
| MTLG12-65Ah | 12 | 65 | 19.70 | 43.34 | 350 | 13.78 | 166 | 6.53 | 179 | 7.05 | 179 | 7.05 | T7-T14 |
| MTLG12-75Ah | 12 | 75 | 21.80 | 47.96 | 260 | 10.24 | 169 | 6.65 | 211 | 8.30 | 215 | 8.46 | T14 |
| MTLG12-100Ah | 12 | 100 | 28.00 | 61.60 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T16a-T16 |

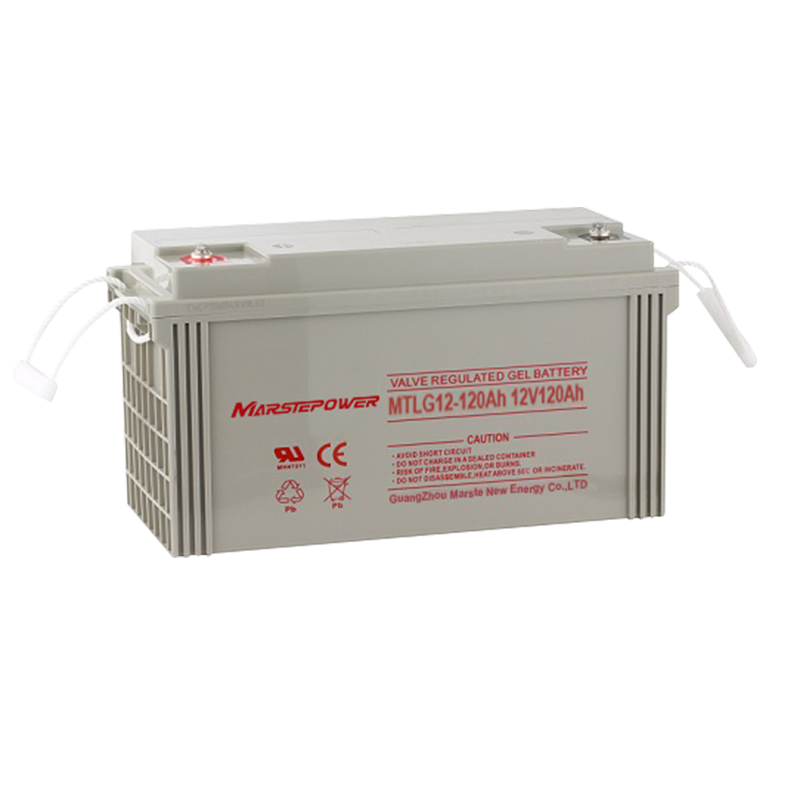

| MTLG12-120Ah | 12 | 120 | 33.00 | 72.6 | 407 | 16.02 | 174 | 6.85 | 209 | 8.23 | 240 | 9.17 | T16 |

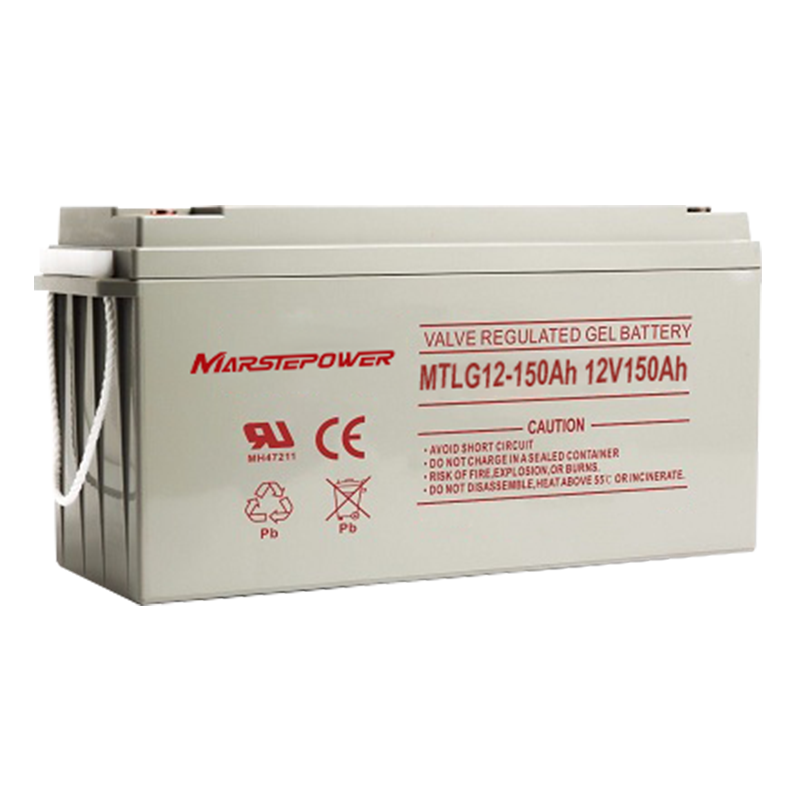

| MTLG12-150Ah | 12 | 150 | 42.00 | 92.4 | 484 | 19.05 | 170 | 6.69 | 240 | 9.45 | 240 | 9.45 | T16 |

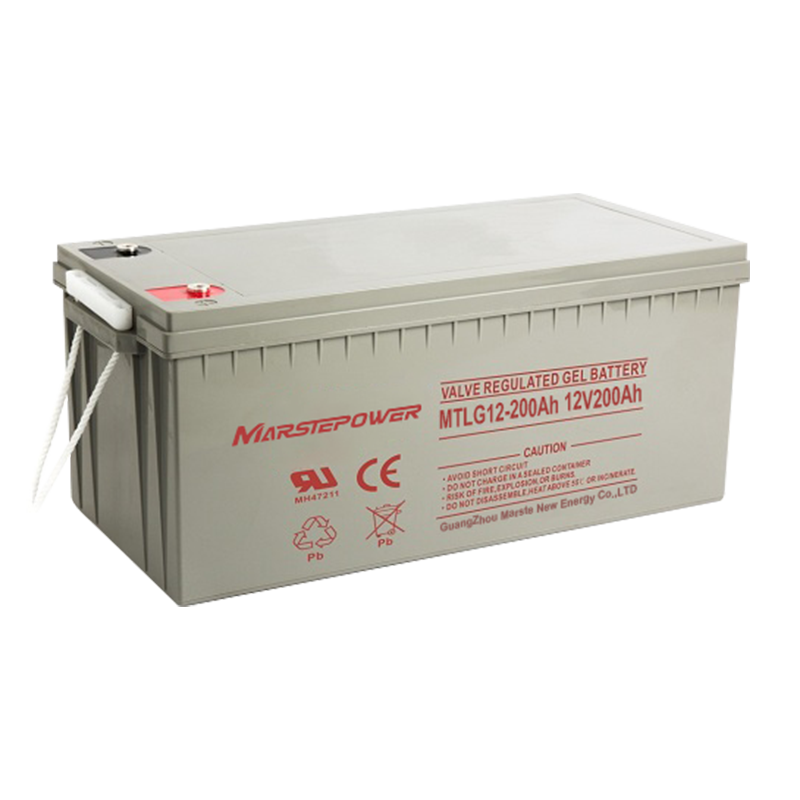

| MTLG12-200Ah | 12 | 200 | 58.00 | 127.6 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T16-T18 |

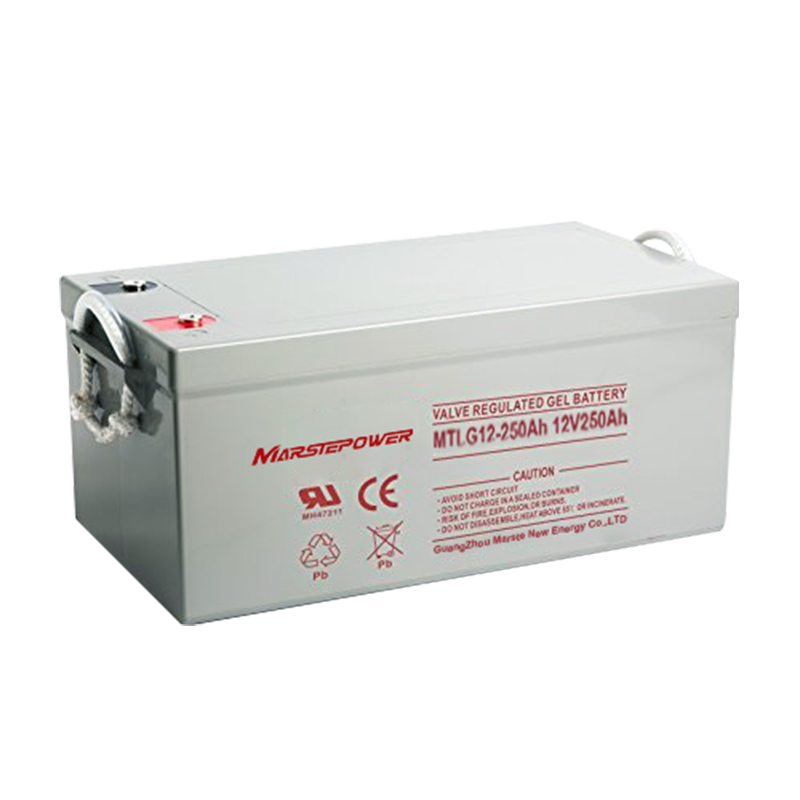

| MTLG12-250Ah | 12 | 250 | 72.00 | 158.4 | 520 | 20.47 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T16-T18 |
